All about View: Camera, Keyboard and Mouse actions in Lumion View

Avatar
Peter M
  • Updated
Follow

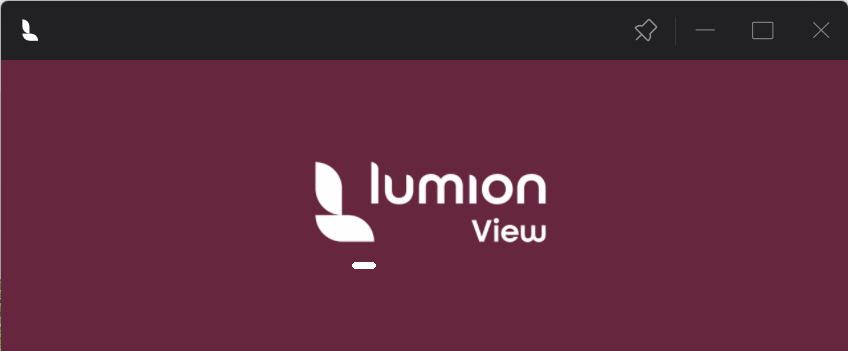

LView Loading View Window preparing_fullCut.png



Menu:

1. Ten Primary Keyboard and Camera Control Actions.

2.  Keyboard and Mouse actions for the Camera.

2.1: Keyboard Navigation.

2.1.1: Change the Speed for Keyboard.

2.2: Mouse Control.

2.2.1: Look around.

2.2.2: Pan.

2.2.3: Move camera forwards/backwards.

2.3: Other Navigation and View Options.

2.4: Change Camera View of model for a Standard View.

3. Other Keyboard and Mouse actions.

4. Camera Control using the Camera Cube.

5. Camera Types.



(Windows interface and keyboard, Mac: replace Ctrl key with the Mac Command (⌘) key )

For Mac see also:



1. Ten Primary Keyboard and Camera Control Actions:

The Camera and keyboard use a few of the same keys as in Lumion.

The View Help screen has all the information on camera and keyboard actions.  We'll also provide them here along with any further information you may need. LView Help button.png

Windows edition:

Keyboard and Mouose controls only xHelp screen - 50p.png

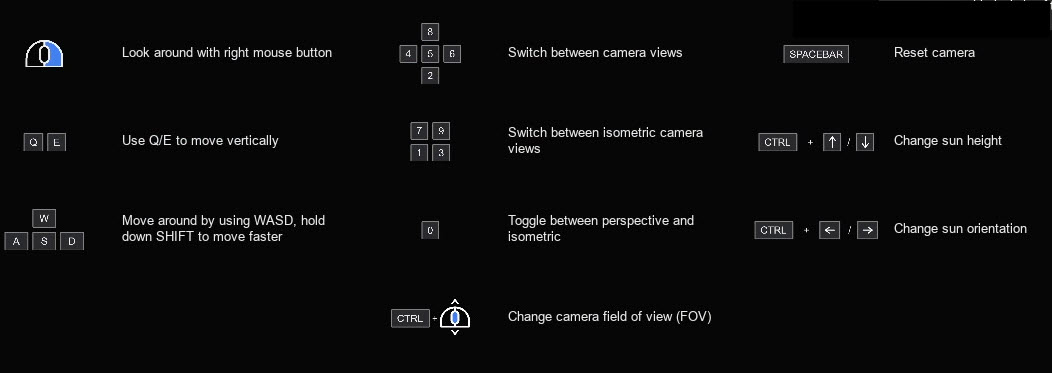

Mac edition:

LView-Skp-Mac _Helpscreen_3-cut.jpg



The inputs are currently bound to the following>



2. Keyboard and Mouse actions for the Camera:

Win editions: 10 main actions.

Mac edition: check with the summary above and in the Help screen.



2.1: Keyboard Navigation

Keyboard - keys WASD navigation.png
W Move camera forward.
S Move camera backward.
A Move camera left.
D Move camera right.

 Keyboard - navigation keys QE move vertically.png
Q Move camera up.
E Move camera down.

(The navigation keys are currently not supported.)



2.1.1: Change the Speed for Keyboard

SHIFT + Keyboard (W,S,A,D) Fast.

SHIFT + SPACEBAR + Keyboard (W,S,A,D)

 Maximum speed.

SPACEBAR + Keyboard (W,S,A,D)

 Slows down movement.

Applies only to WASD keys.



2.2: Mouse Control

2.2.1: Look around

 Mouse-right Camera-Look around.png

RIGHT MOUSE BUTTON + Move mouse

 Look around.



2.2.2: Pan

Mouse-middle Camera-Pan.png

MIDDLE MOUSE BUTTON + Move mouse

 Pan camera.



2.2.3: Move camera forwards/backwards

Camera change FOV-zoomInOut.png

MOUSEWHEEL Froward/Back

 Move camera forwards/backwards.  Changes Field of View (Zooms In or out to the model).



2.3: Other Navigation and View Options:

Keyboard-H Reset Camera.png

CTRL + H

 Reset camera pitch to horizontal viewpoint.

Mouse-key-O Camera-Orbit.png

O + RIGHT MOUSE BUTTON + Move mouse

 Orbit the camera around the model.



2.4: Change Camera View of model for a Standard View

Keybaord NumPad 1to9 changeViews.png

1, 2, 3, 4, 5, 6, 7, 8, 9

Switch between the standard camera views, or use the Camera/View Cube:

Camera Cube_1.png

1: Front

2: Back

3: Left

4: Right

5: Top

Mid-points:

6: Left and Front from Top

7: Right and Front from Top

8: Left and Back from Top

9: Right and Back from Top

Note: the keys are the number keys and not the numPad keys

See Also:  Camera Control using the Camera Cube.



3. Other Keyboard and Mouse actions:

Keybaord-Ctrl-UpDown NavKeys Change SunHeight.png

CTRL + Up or Down navigation keys

UP/DOWN

Sun: Change the height of the Sun.

Keybaord-Ctrl-Leftright NavKeys Change SunHeading.png

CTRL + Up or Down navigation keys

UP/DOWN

Sun: Change the Heading (Orientation) of the Sun.



See Also:



Wanting a different Set of keys?

Whilst the developers understand that there are other keyboard keys that users might use in SketchUp and other 3D CAD or software, it was important to first use these camera/key combinations.

If you wish to provide feedback please do so via the internal Feedback option in Lumion View:

Send Feedback.png



4. Camera Control using the Camera Cube

 Camera Cube is here.png

There are also some further View Control tools.

Use this easy to use Camera Cube to go to the Standard Views:

  • Front, Back, Left, Right, Top
  • Mid-points - 45degrees:
    • Left and Front from Top,
    • Right and Front from Top,
    • Left and Back from Top,
    • Right and Back from Top
 Camera Cube_2.png
Click and hold left mouse button down to move/rotate the Camera Cube to re-position the view of the camera for any view.

For keyboard, see also: Change Camera View of model for a Standard View

Works for both Orthographic and Perspective cameras.

Example: Front

Camera Cube View example1-front.jpg

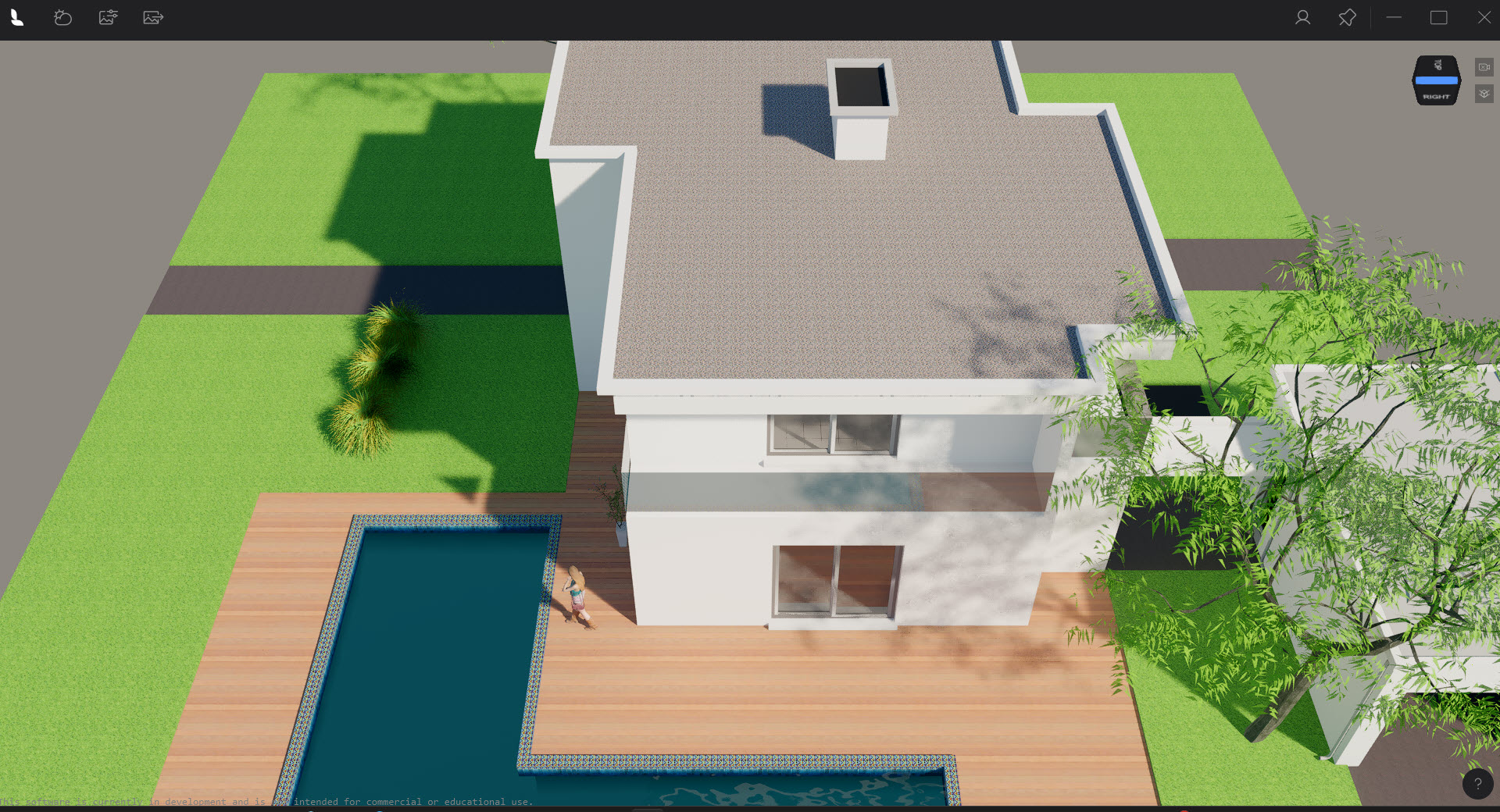

Example: Top right:

Camera Cube View example2-TopRight.jpg





5. Camera Types:

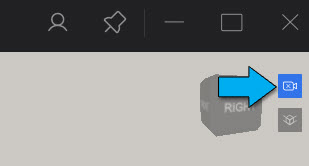

5.1: Camera Sync - On/Off

Start and stop the real time sync of the camera between your SketchUp CAD application.

Camera Sync button _b _ptr.jpg

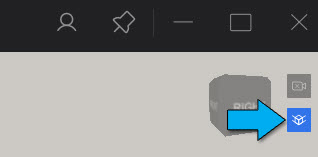

5.2: Camera Projection: Perspective or Orthographic

Toggle/change between a Perspective camera view or an Orthographic view for the camera.

Camera Persp-Ortho button _b _ptr.jpg



5.2.1: Switch to Orthographic or Perspective

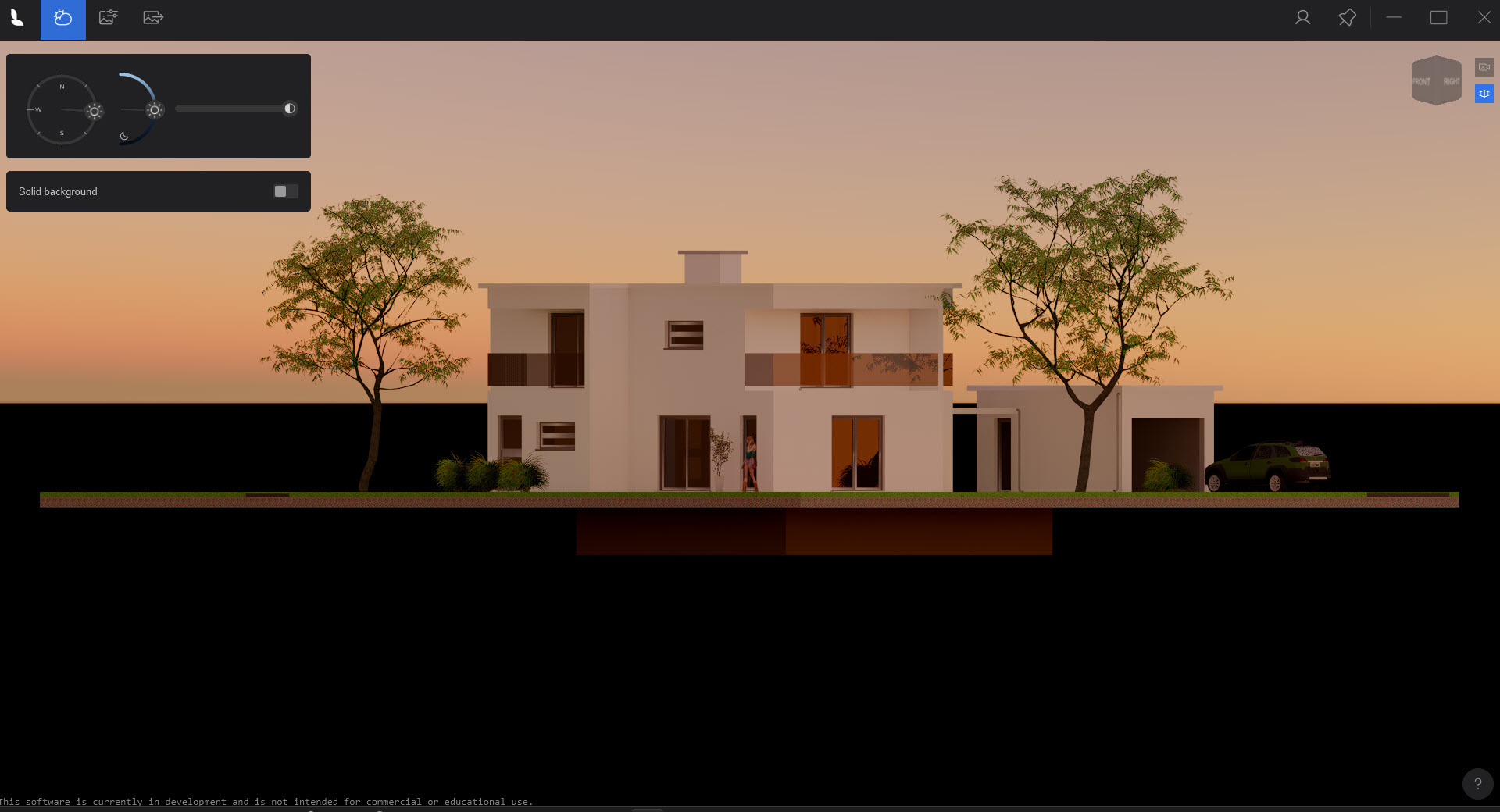

Switch from Perspective to Orthographic:

Camera Type example1-Orthographic_b.jpg

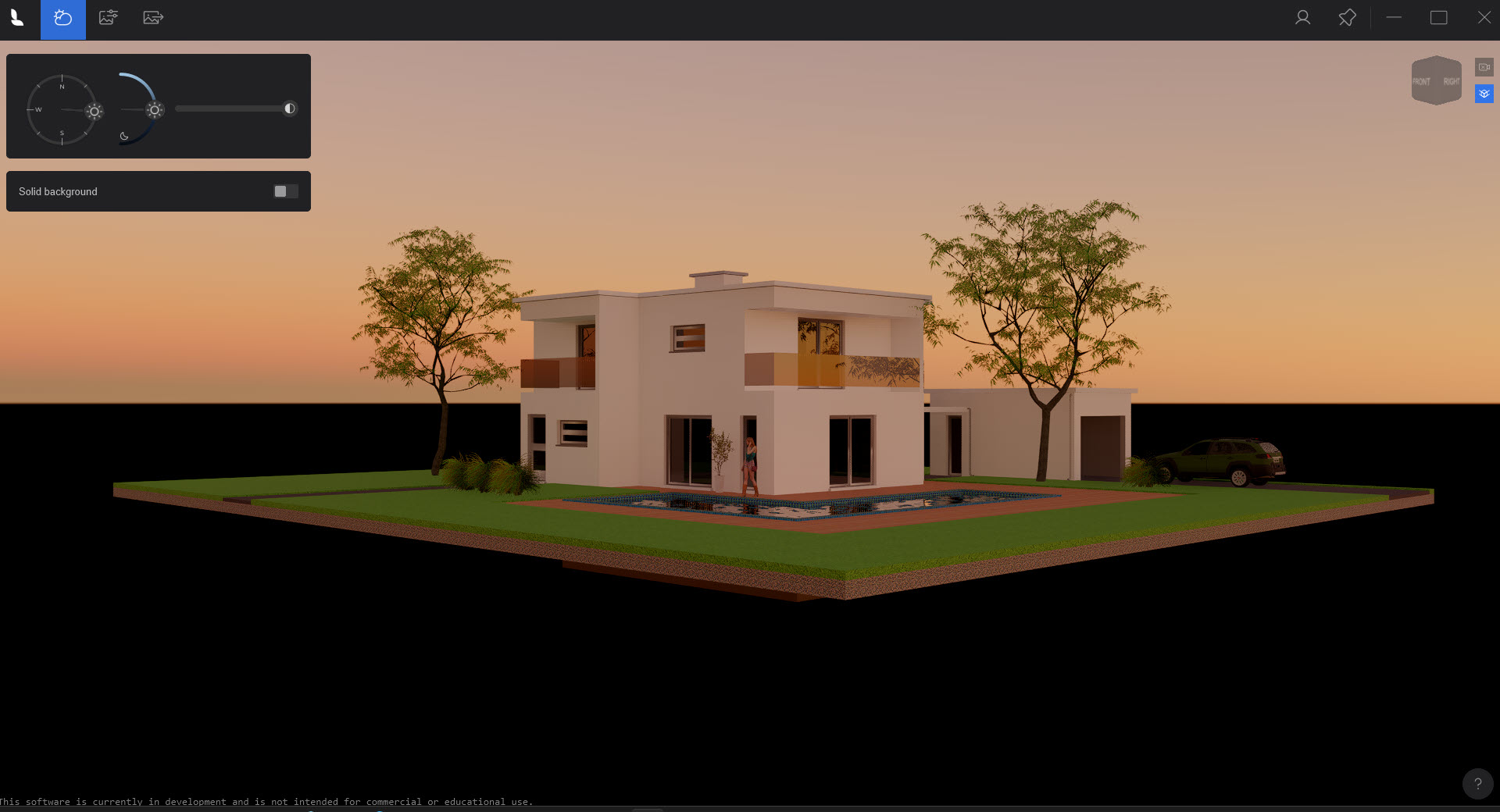

Switch from Orthographic to Perspective:

Camera Type example1-Perspective_b.jpg



6. FAQ:

6.1: Why does the camera not change views when I use the keyboard and not the View Cube?

The keyboard currently uses only the number keys. The numPad keys are not used, but this may change for a future update.

Refer to section 2.4: Change Camera View of model for a Standard View.
